Design and Manufacturing of Energy saving and Environmental Protection Equipment

Automatic metal chips crushing compressor

The automation equipment is independently developed and designed to solve the metal cutting waste chips produced by CNC lathes, milling machines, machining centers, etc. in the process of processing parts manufacturing.

Product Features

Equipped with a crushing blade box

Equipped with opposite shear crushing blades

Suitable for metal cutting chips of different materials such as stainless steel, iron, aluminum, copper, etc.

Hydraulic power drive

Equipped with small hydraulic motors, achieving equipment miniaturization and lightweight

Shorten crushing and compression time, improve overall equipment effectiveness

Easy to use with touchscreen

Visualized operation with touch screen

Stable control with PLC

Low noise, energy-saving and environmentally friendly

High performance, low noise

Recycling and reuse of cutting oil

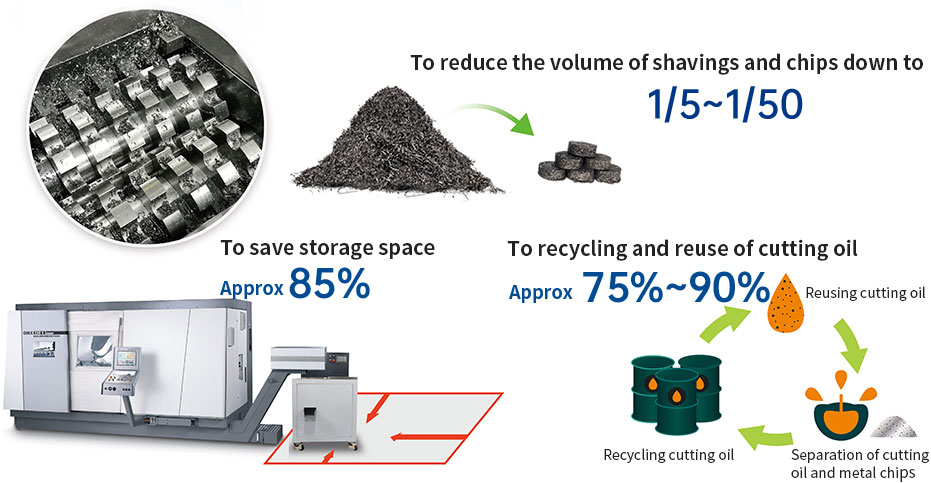

Targeted Effectiveness

To save storage space
Approx 85%

To save handling time
Approx 85%

To recycling and reuse of cutting oil
Approx 75%~90%

To reduce safety hazards by improving 5S production site environment

Compressed and formed metal chips block could be sold for added value

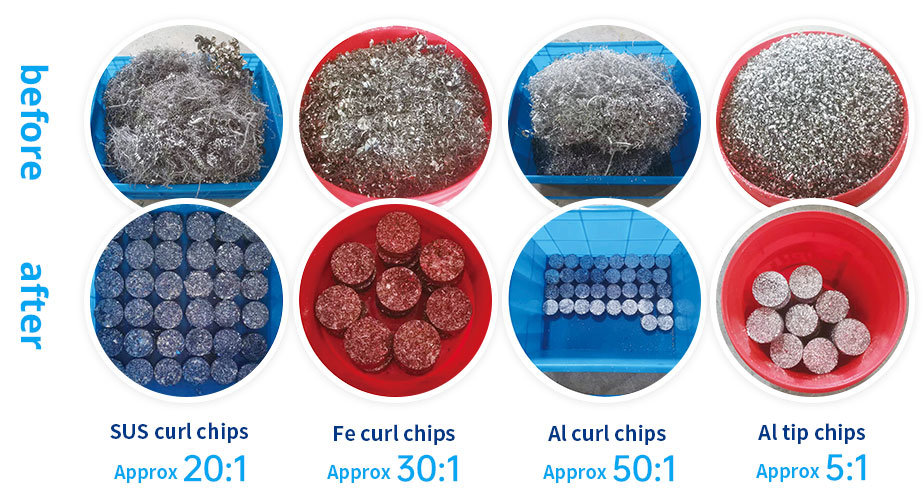

Different materials before and after compression

Main Specifications

Product Name	Automatic metal chips crushing compressor
Model	WL-CCM-V100
Chip Types Suitable for Processing	Suitable for metal cutting and shaving chips of different materials such as Stainless steel, iron, aluminum, copper, etc.
Block Dimension	Φ70mm
Power Supply	380VAC / 50Hz / 3P+N+PE
Motor Capacity	4.2KW
Rated current	16A
Tank Capacity	40L
Compressing Pressure	18-20MPa
Control Panel	Touch Screen
Operating Time	approx 40S
Dimension	8507201370mm
Approx. Mass	520Kg
